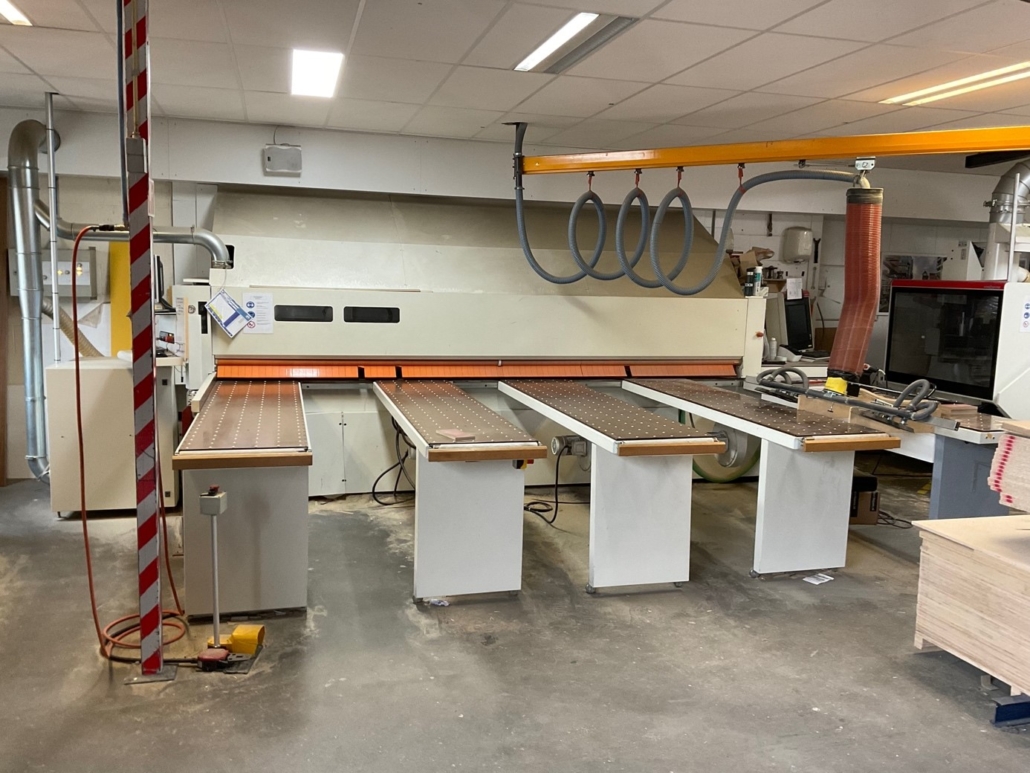

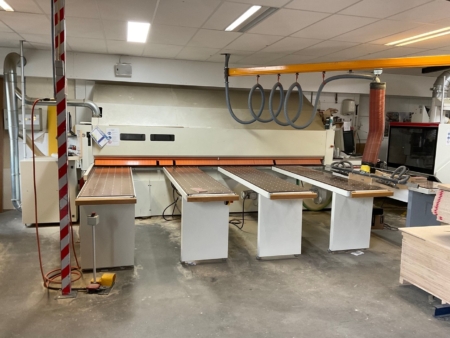

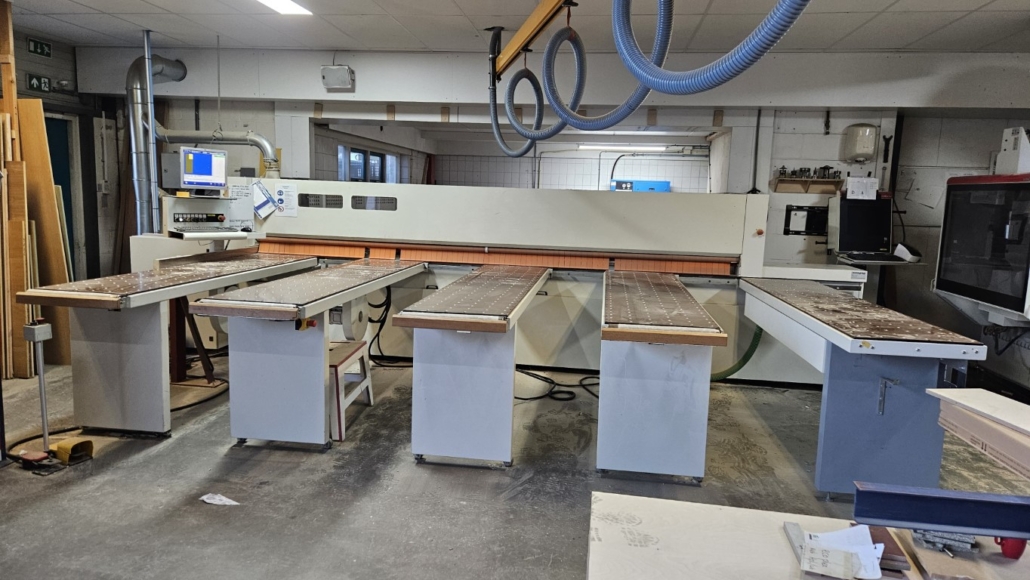

| SCM Prima N67 AE032853 2010 |
|
|
|
| Manufacturer: |
SCM 2010 |
| Type: |
Prima N67 |
| M-Nr..: |
AE032853 |
| Year: |
2010 |
| Machine control: |
PLC Manager 100, PC |
|
Wincut software – Windows embedded |
|
17″ TFT screen |
| YouTube: |
https://youtu.be/YsoaxhVAPnk |
|
|
| Saw length: |
4.300 mm |
| Dept/- panelwidth: |
4.300 mm |
| Main saw: |
7.5 KW |
|
|
| Diameter saw blade: |
320 * 4,4 * 80 mm, 4.600 tpm |
| Bookthickness: |
max. 67 mm |
| Saw feed speed: |
6-60 m/min (return 60 m/min) |
| Scoring saw: |
1.1 KW-6.300 tpm, ProLock quick change system |
| Scoring saw diameter: |
160 * 4,4 * 55 mm |
| Pressure beam: |
automatic, programmable pressure setting |
| Clamps: |
12 clamps |
| Programmable panel beam: |
0-24 m/min. frequency controlled |
|
24 m/min. return speed |

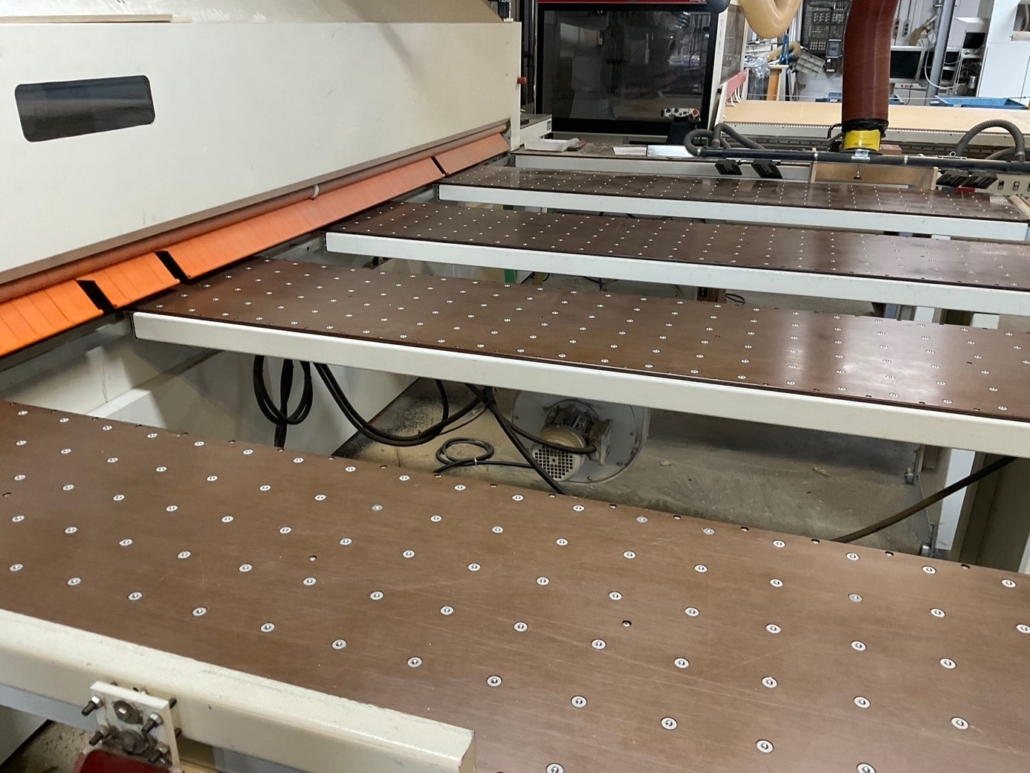

| Air cushion tables: |
4 tafels, |
| Dust extraction: |
2 * ø120mm, 1 * ø100 mm |
| Required air extraction volume: |
2.2000 m3/uur |
| Dimensions: |
8.100 * 6.400 * 1.500 mm |
