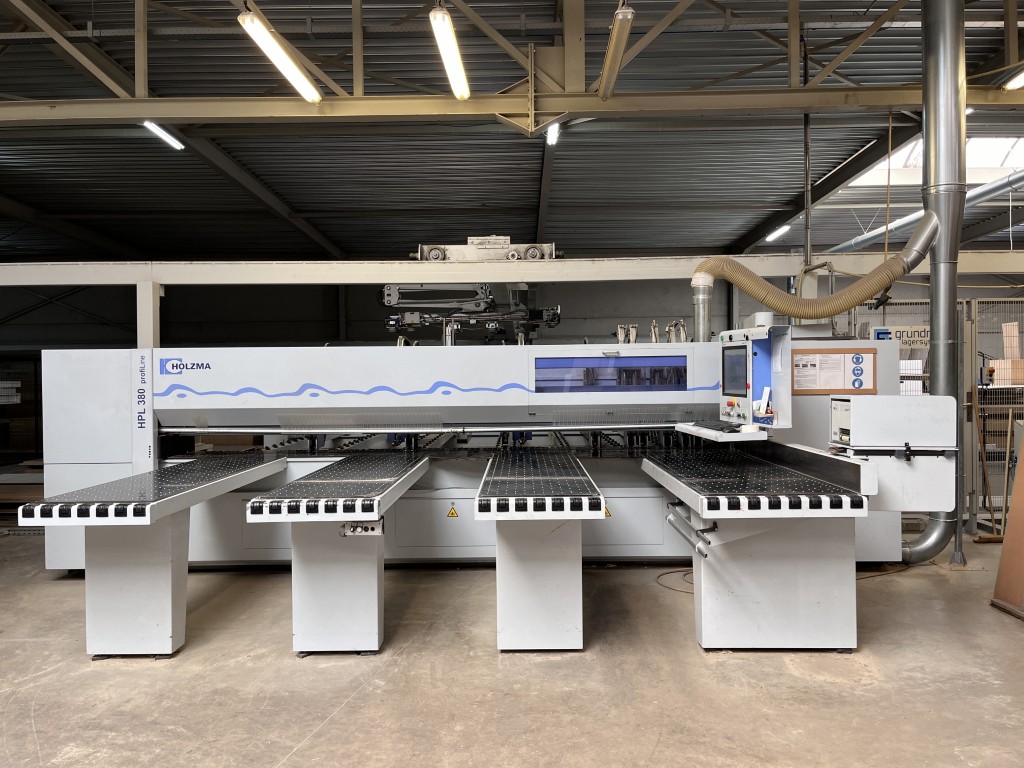

| Holzma HPL380/43/22 Profi |
|
|
|
| Manufacturer: |
Holzma |
| Type: |
HPL380/43?22 Profi |
| M-Nr..: |
0-240-06-8971 |
| Year: |
2010 |

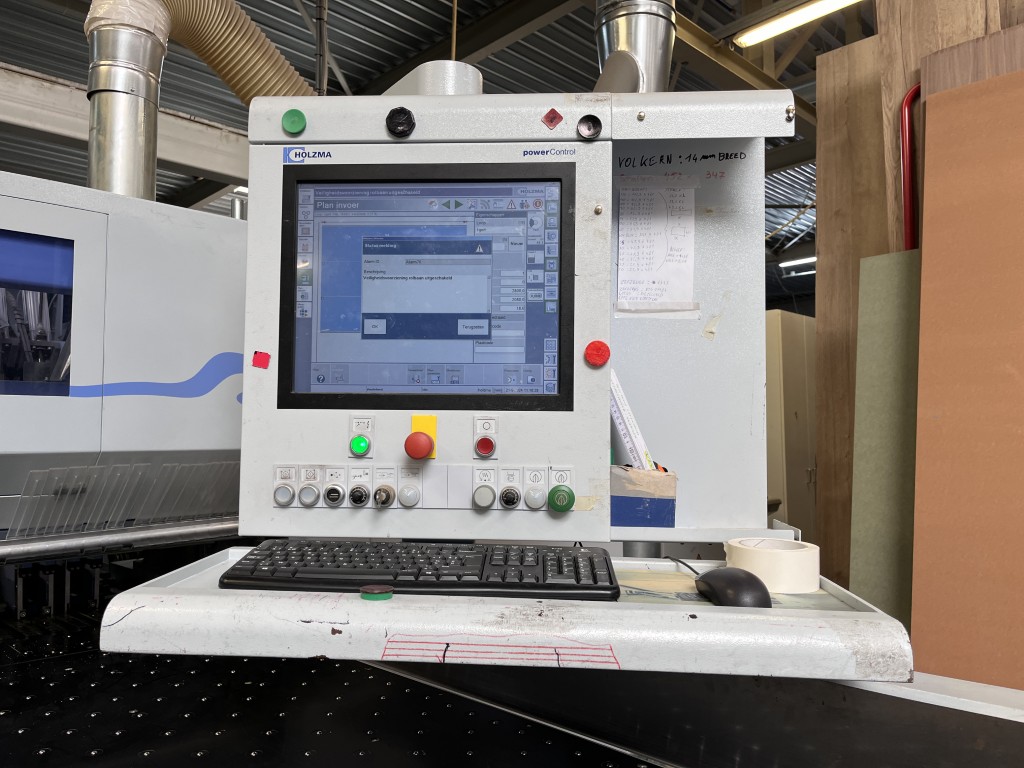

| Machine control: |
Holzma CAD Matic 4 – Professionel, 2D/3D, Ethernetanschluss |
|
Windows XP embedded |
|
19″ TFT touchscreen DVD, USB |
| Power: |
ca. 28 KW – 40A – 3 Ph/50Hz |
|
|
| Saw length: |
4.300 mm |
| Dept/- panelwidth: |
4.300 mm |
| Main saw: |
18 KW |
| Bookthickness: |
95 mm |
| Max. saw thickness: |
82 mm |
| Saw feed speed: |
130 m/min |
| Scoring saw: |
2,2kW |
| Scorer saw blade: |
180 * 4,6 * 45 mm |
| Side press: |
Automatic Holzma patented side press system |

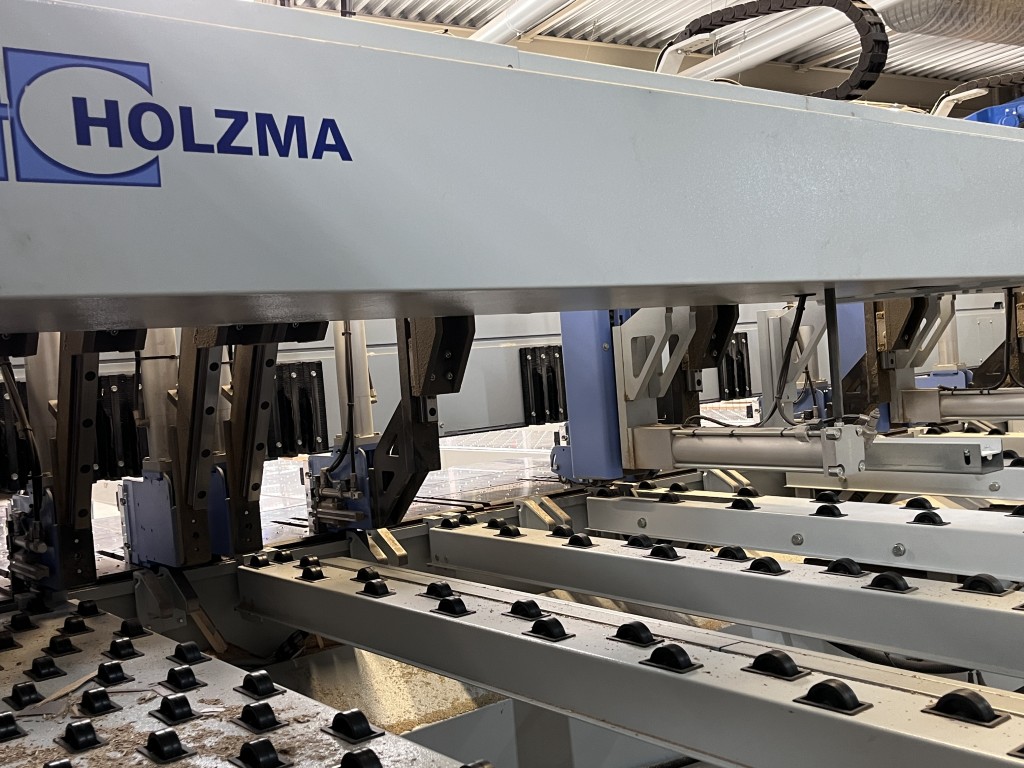

| Pressure beam: |
Automatic , with programmable pressure |

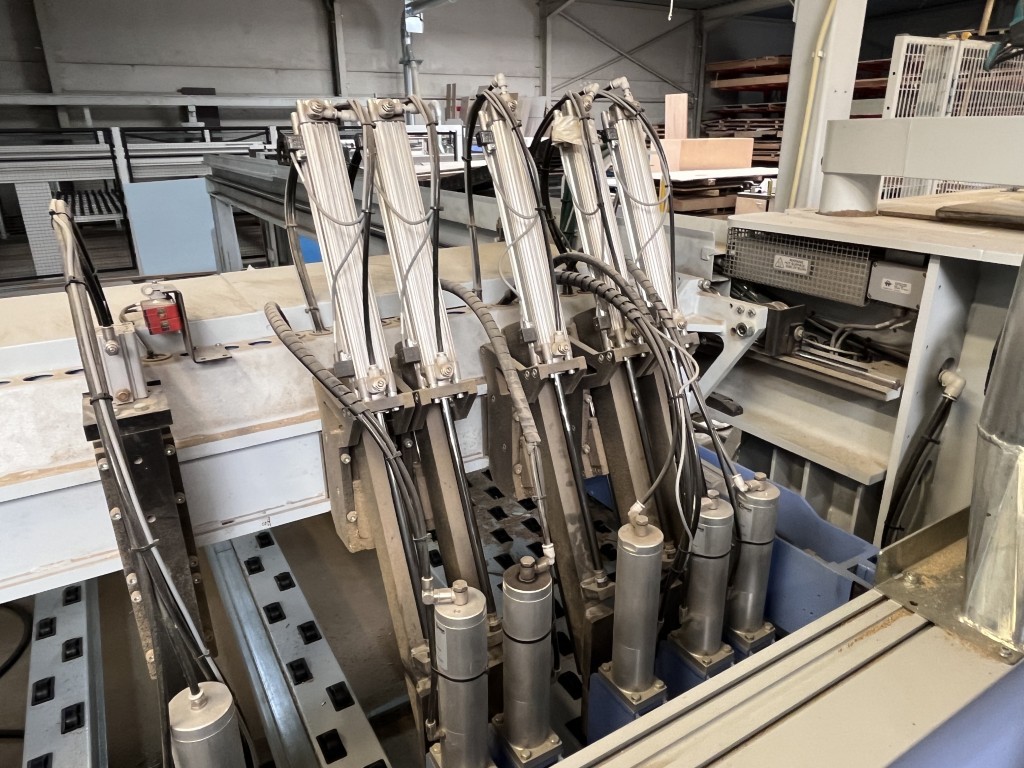

| Clamps: |
7 Sclamps, 75/275/475/1050/1850/2650/3450 Programmable |
| Programmable panel beam: |
stepless 1-80 m/min. |
| Air cushion tables: |
4 tables |
| Table dimensions: |
2.170*650 mm |

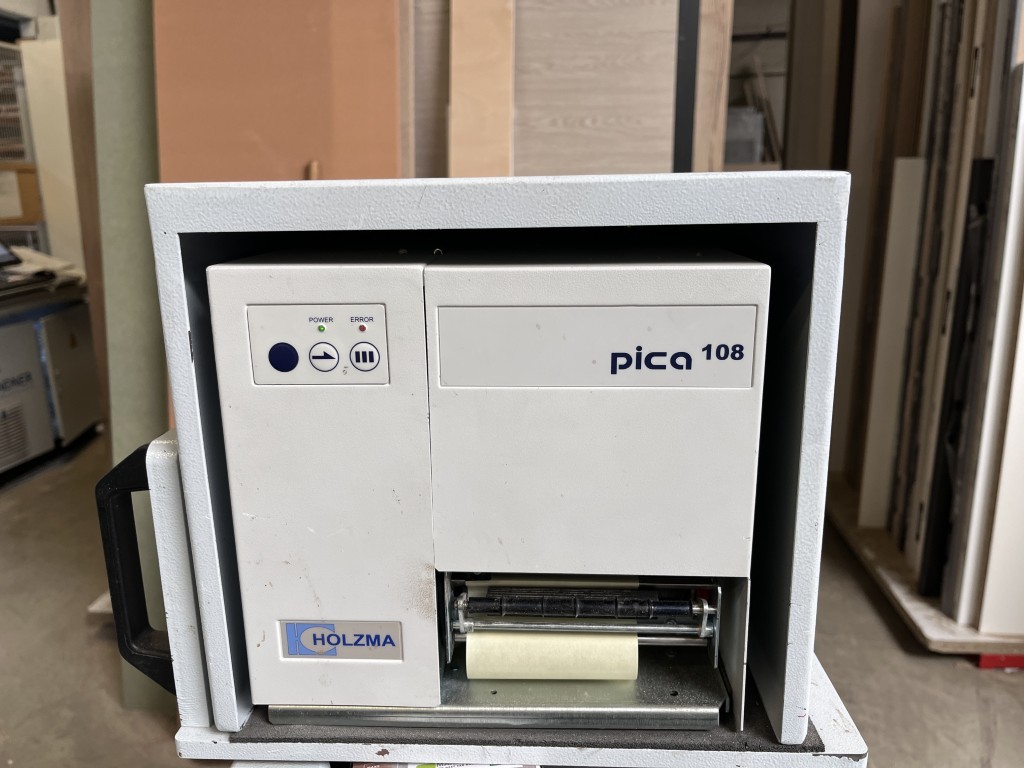

| Label printer: |
Pica 108 |

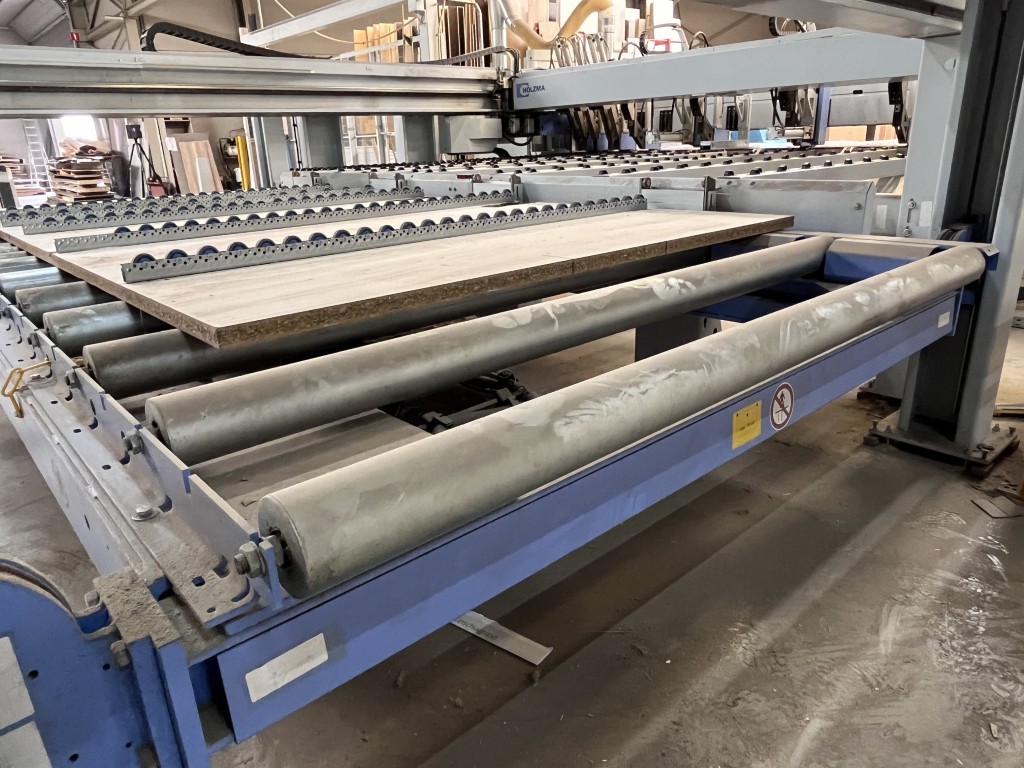

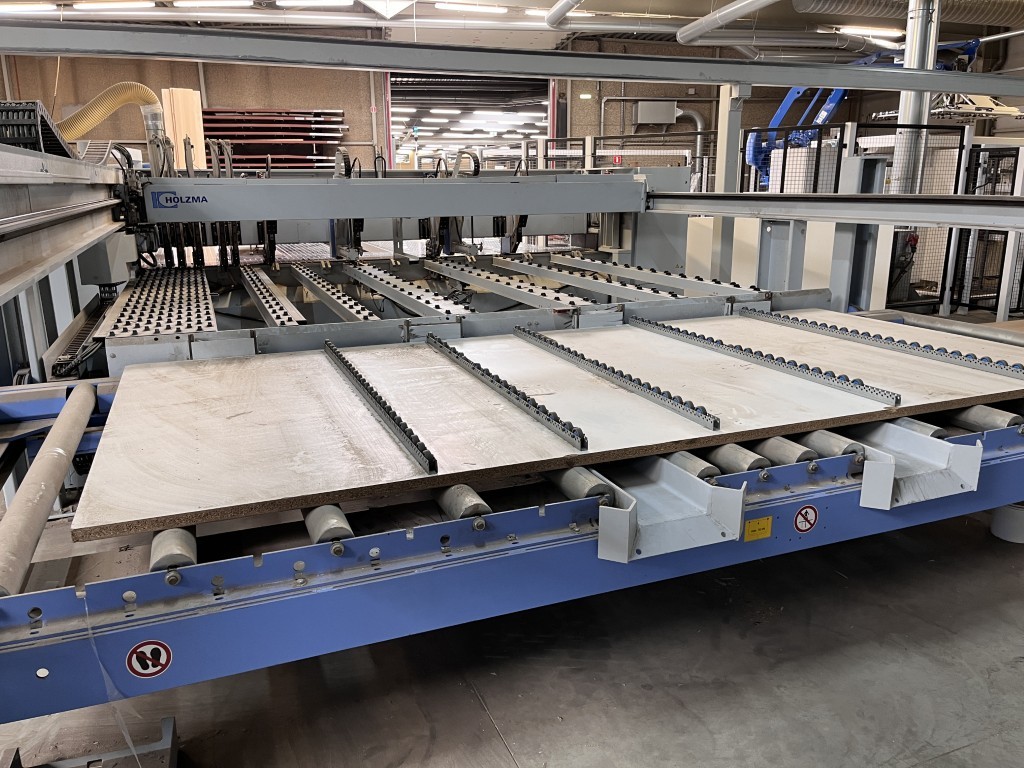

| Loading: |
Rearside automatic lift table . Dimensions: 4.300 * 2.200 mm, fitted with heavy duty rolls |
| Destacking: |
Panel surface protection destacking with thickness measuring |
|
|
| Dust extraction: |
250 mm |
| Required air extraction volume: |
5.500 m³/ h |
|
|
| Condition: |
Till Q2-2026, thge machine can be inspected in production |
|
Before machine will be taken out of production by our engineers, all will be thoroughly checked |
|
|
| Dimensions: |
6.800/9.422/4.660 mm |
