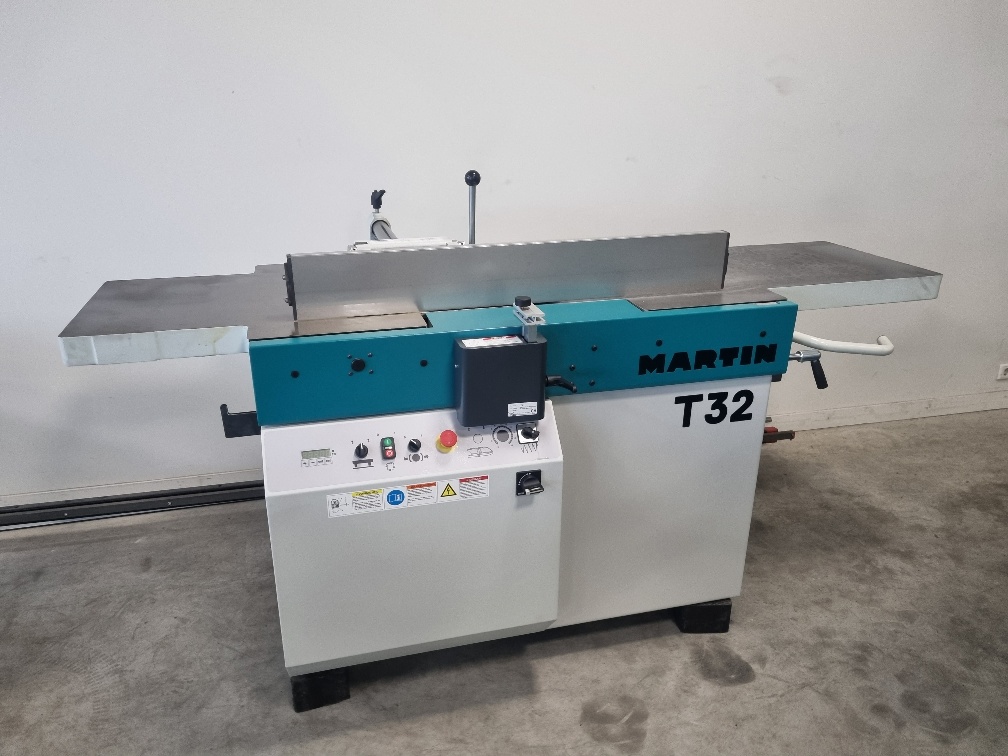

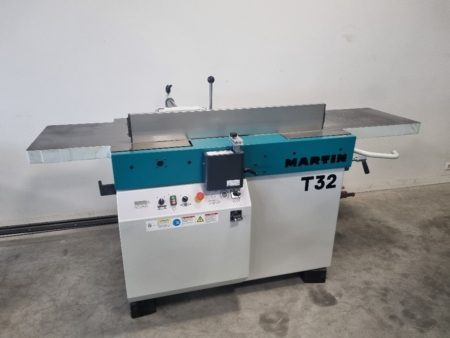

| MARTIN jointer-thicknesser T32 | |||
| Working width: | 530mmm | ||
| Thickness: | 3 – 250mm | ||
| Feed speed: | 6 / 12 m/min | ||
| Max. planing dept: | 8 mm | ||
| Infeed tabel length: | 1.215 mm | ||
| Outfeed table length: | 1.035 mm | ||
| Table height: | 920 mm | ||
| Thickness table length: | 920mm | ||
| Min. workpiece length: | 230 mm | ||
| RPM: | 5.000 rpm | ||
| Weight: | 1050 KG | ||

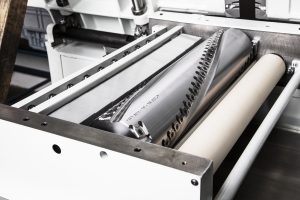

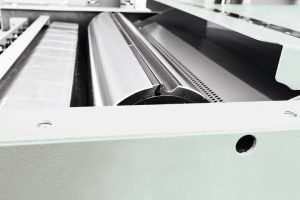

| Cutter block: | Ø 120mm Tersa Z-4 solid steel cutter block | ||

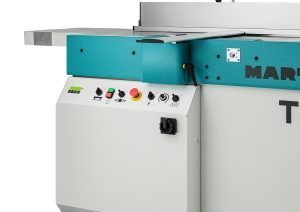

| Control | Electric elevation thickness tabel with LED display | ||
| Fast- and slow/fine elevation switch | |||
| Spring supported tables | |||
| Feed speed: | 2 speed; 6 & 12 m/min change of speed during production possible | ||

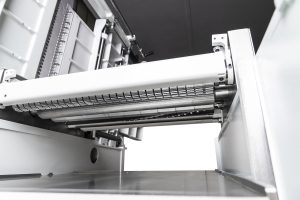

| Spiral infeed roller & rubber outfeed roller (ø67mm) | |||
| Segmented pressure beam | |||
| Edging fence: | Aigner 45° tilting with scale | ||
| Bridge guard: | Prisma Type 1567 safety guard | ||
| Dust extraction: | Ø140mm | ||
| Electric equipment: | Automatic star-delta switch | ||
| Brake motor | |||
| Mainswitch with lock | |||
| 2 emergency switches | |||
| Apliances: | Knive changing tools | ||
| 2 set Tersa reversable knives 530 mm | |||
| 1 pair of dummy knives 530mm | |||
| Hex-key | |||
