Martin T27FleX

T27 FleX Tilting Arbor Spindle Moulder
Specifications of the standard version
• Machine Base Modern composite frame • Weight ca. 1,200 – 1,450 kg
• Table size 1255 x 900 x 95 mm, made of heavily ribbed cast iron
• Table height 900 mm
• Table openings 255 / 205 / 161 / 106 / 74 mm Ø
tools with max. Ø of 250 mm (max. 150 mm for 45° spindle tilt) can be lowered below table level
• Rotational speeds Motor with variable speed inverter control 7.5 kW (10 HP), speed range 1,000 – 12,000 rpm;
including patented collision detection system (EP1990697B1)
• Control panel: Control panel at eye level, can be folded away, ergonomically tilted, incl. job sheet holder
• Control 10,1″ TouchScreen control
• Cutter spindle Steep taper SK40; height-adjustable (T27 FiX and T27 FleX) resp. tiltable (T27 FleX only), controlled by electric motor; incl. ‘’DornFix‘’ quick-change system; for frequent arbor changes, we recommend option T2770_85-a or T2770_63F-a
• Spindle stroke 150 mm; repetition accuracy of ± 0.025 mm;
• Fence Precise, double-sided guided and driven fence, adjustable with one hand using the handwheel according to digital display integrated in the control; simple and extremely precise reinsertion of fence after working without  fence; adjustment of  fence jaw (right) with handwheel according to scale with nonius; MARTIN fence jaws made of aluminium, hard-coated, with holders for moulding board and guide bars; movement range overall fence -6 /+125 mm; movement range of fence jaw (right)
-10/+10 mm; display resolution 0.05 mm
• Tool diameter Max. 250 mm in fence (tools with a maximum diameter of 250 mm can be lowered below the table)
Max. 350 mm in tenoning guard
• Extraction: Extraction port at fence 120 mm Ø ; extraction port below table 120 mm Ø. Minimum dust requirements (per extraction port): 14 m³/min. at 500 – 800 Pa
• Maintenance Central oil lubrication (oil dosage control) with hand-operated pump
• Standard 1 protection device CPS guard
accessories 1 curved moulding guard CPS Tapoa 08 (for arbor Ø 30 – 50 mm and tool ø max. 160 mm)
1 cutter arbor Ø 30 x 140 mm (SK 40) 1 grease gun with long-term grease
1 open-ended wrench41 mm (SK 40) 1 moulding board
1 torque wrench (DornFix system) 2 Allen wrenches (6 + 10 mm)
1 job sheet holder DIN A 4
• Electrical equipment Automatic star-delta start and electric wear-free spindle brake; switchable connection box for feed unit; potential-free contact for control of extraction;  2 EMERGENCY STOP buttons, lockable main switch; low-voltage protection, motor protection switch and overload protection; required power supply: 3 ~ / 400 V – 50 Hz

• Emission values Emission sound pressure level at the workplace LpA according to DIN EN ISO 11202 [dB(A)]
Idling noise (w/o suction) 78 Operating noise (w. suction) 85
Noise emission value L WA according to DIN EN ISO 3746 [dB(A)]
Idling noise (w/o suction) 85 Operating noise (w. suction) 89
Dust emission: DGUV test “wood-dust-tested”
Control Properties
Touch-Screen – user interface 10,1″ (256 mm)
• Electronically controlled cutting height (spindle), full integration of cutting height in the control and program memory; repetition accuracy of ± 0.025 mm
• Electronically controlled cutting angle (spindle), tiltable by ± 46°, full integration of cutting angle in the control and program memory; repetition accuracy of ± 0.005°
• Integrated display of fence position cutting depth
• Expandable with the following additional controlled axes (maximum 6 axes):
• Cutting depth (total fence) • Fence jaw, right
• Table rings, electric • Feeder support height
• Easy-to-handle display and intuitive operation of up to five axes on the HOME page
• Display and operation of the sixth axis on 2nd page of control
• Conversion and digital display of tool position (cutting height/cutting depth) in relation to table and fence based on stored tool data
• Tool data memory for 1,000 tools, 3 reference points can be stored for each tool; thanks to the new and innovative tool assistant it has become very simple to enter and use adjustable tools
• Program memory for 1,000 tool positions of all digitally displayed axes
• Simple tool and program selection via alphanumeric search function
• Fully automated referencing of axes cutting height and cutting angle
• Controlled and manual movement of the motorised axes possible; if two ore more values exist (i.e. height and depth of a chamfer) all axes can be positioned directly one after the other.
• Selection of the cutters’ rotational direction (right/left); status display for standard rotational direction (right)
• Display for rotational speed, tool name, spindle rings, and current cutting speed
• Integrated calculator with axis-related memory option, integrated operating time counter
• Diagnosis and help menu with operating information
• Customization possible for all languages using Latin/Cyrillic characters sets
• Software key switch / password protection for up to 2 users
• USB interface for backup and transfer of program and tool data; Note: USB stick not supplied
• The variable rotational speed control contains an efficient collision detection system according to EN848-1:2007 (patented). During the automatic positioning of the controlled axes, the spindle rotates with a light, effortless motion (ca. 100 rpm). In this way, the electronic system can safely identify any collision that may have occurred and warn the operator

Related products

© Copyright - A1machines

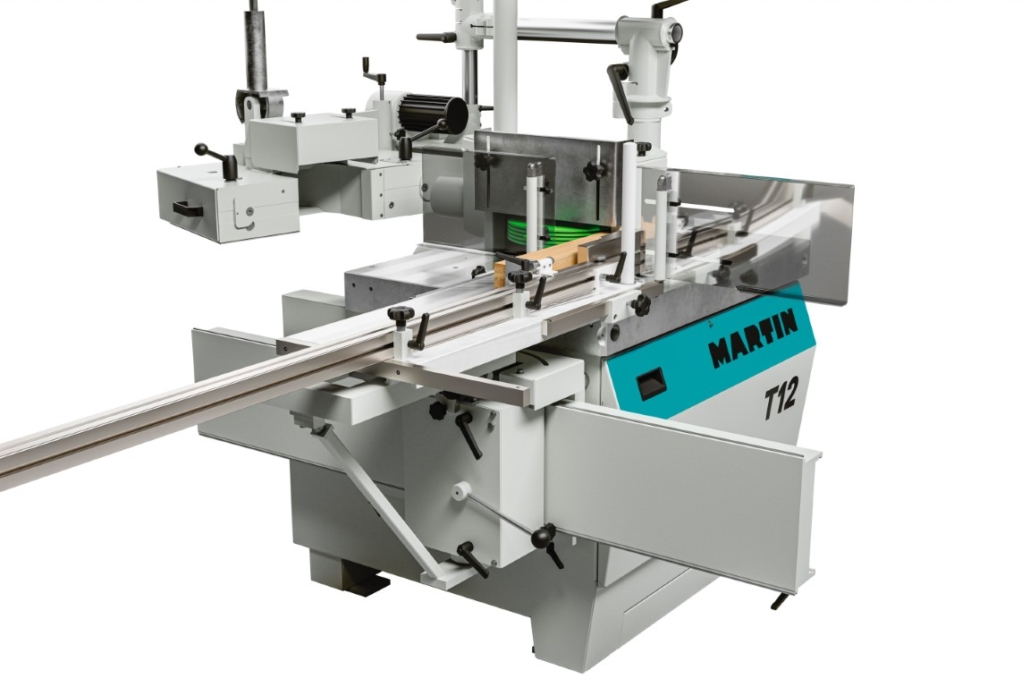

Rupes HE900 hoog vacuum afzuigingMartin T12
