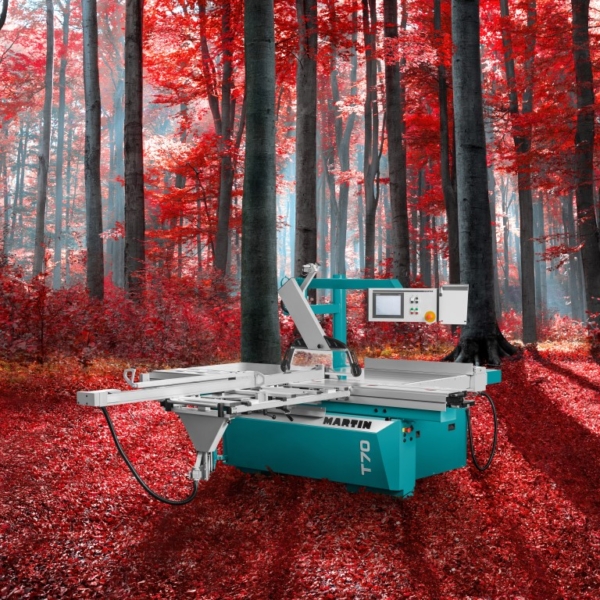

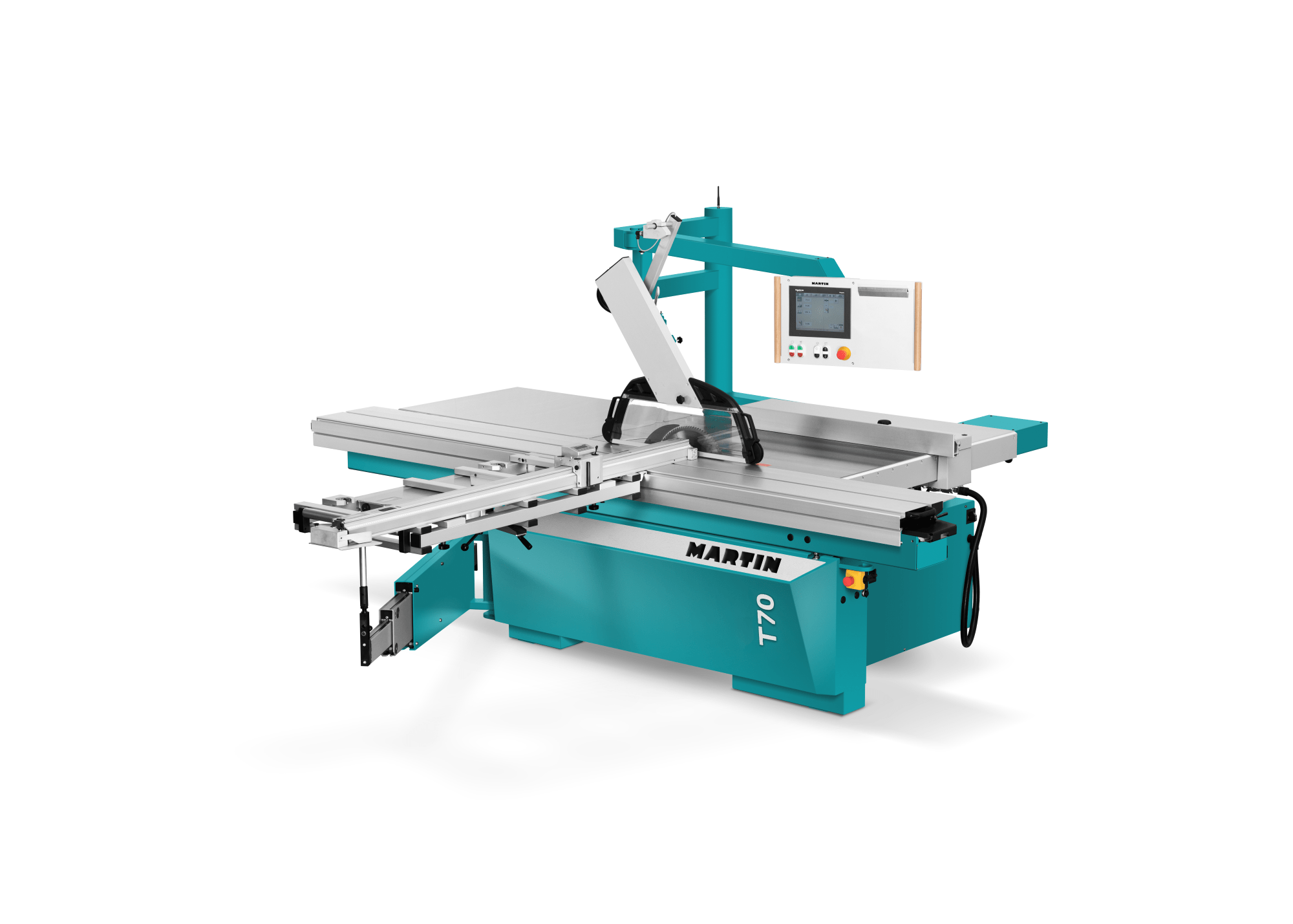

| Martin T70 Automatic sliding table saw with parallogram mitre cross-cut table -46°up to +46° |
|
|
|
| Manufacturer: |
Martin |
|
| Type: |
T70 Automatic |
| Year: |
2018 (machine has been inspected at the OTTO MARTIN factory) |
| M-Nr.: |
V555166 |
|
| Machine control: |
10″ TFT Colour Touch-screen at eye-level, free posiotionable |
|
Possible upto 5-axes control from the Home-page, with graphics |
| Table Size |
850 x 1500 mm in grey cast iron; in grey cast iron |
| Sliding Table: |
3.300 mm |
|
| Cutting Width: |
850 |
|

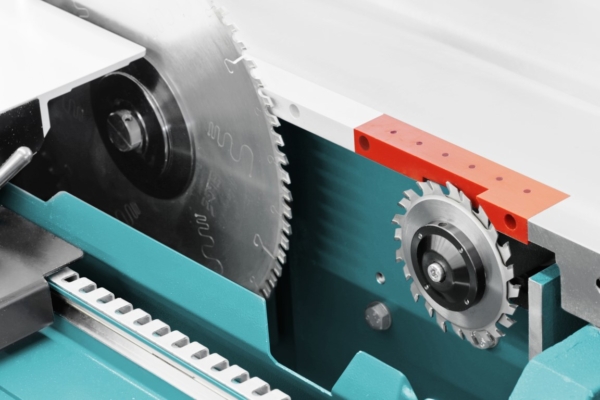

| Main saw: |
7.5 kW frequency controlled rpm |
| Saw Blade Arbor: |
ø 30 mm. two drive pins |
| Saw Blade replace |
“ProLock” quick change system |
| Saw Blades: |
ø 250-550 mm |
| Cutting Heigt: |
204 mm. (saw blade ø550 mm) |
| Zaag neiging: |
0 – 46° |
|

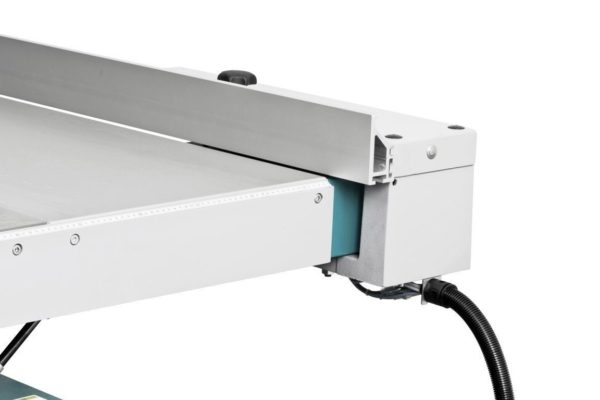

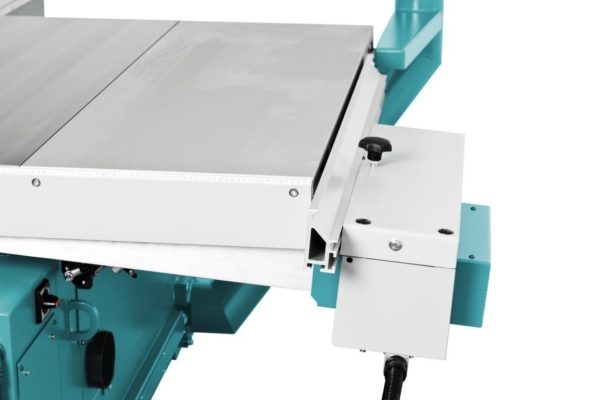

| Rip fence |
fence jaw in anodised aluminium; can be lowered under table level in its final position; |

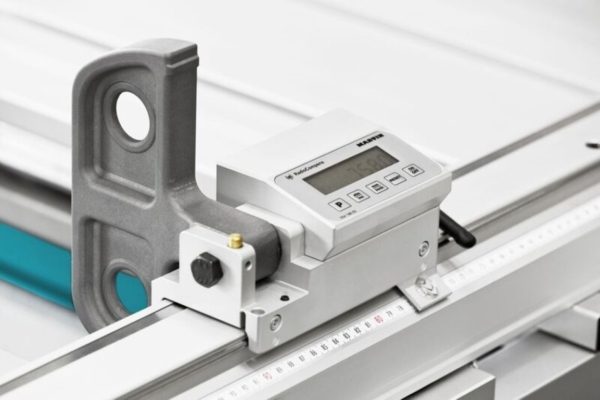

| Length measurement: |
Martin lengte aanslag met 2 gelagerde klapaanslagen |

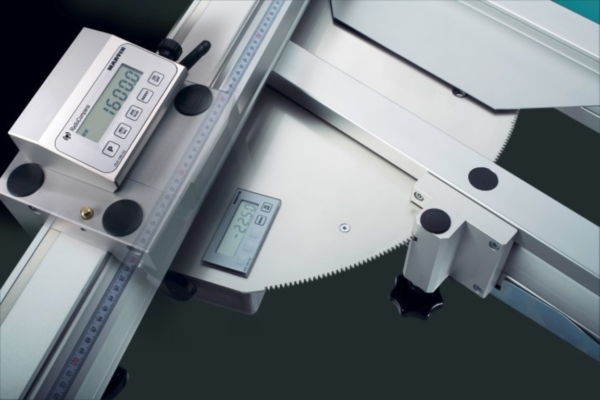

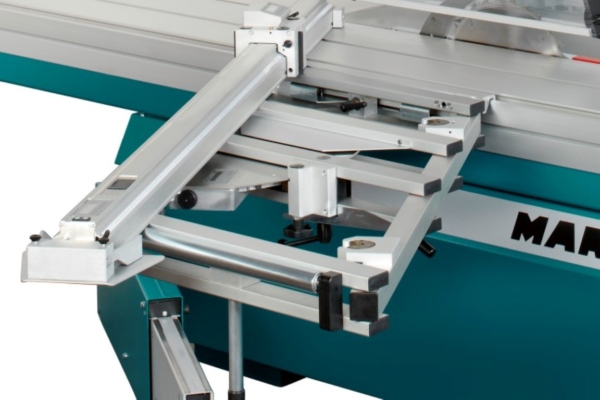

| Parallogram table: |
Mitre cross-cut table -46°up to +46°, with 3-piece swing-arm support |
|
|
|
| Condition: |
Immaculate OTTO MARTIN Works serviced |
+31(0)547-870020
