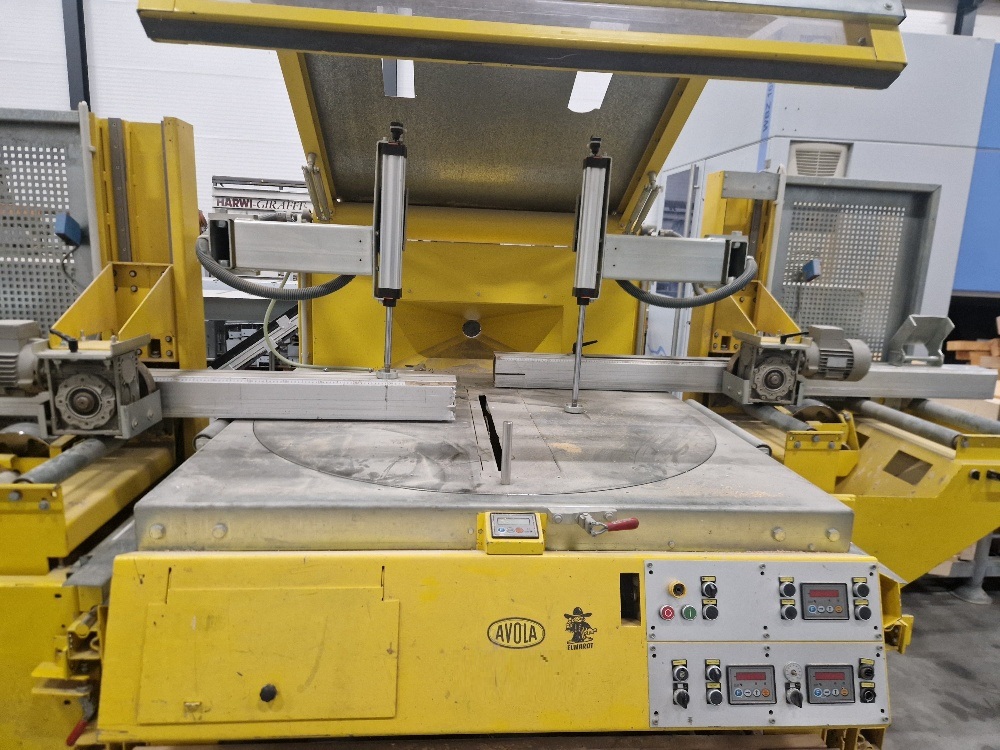

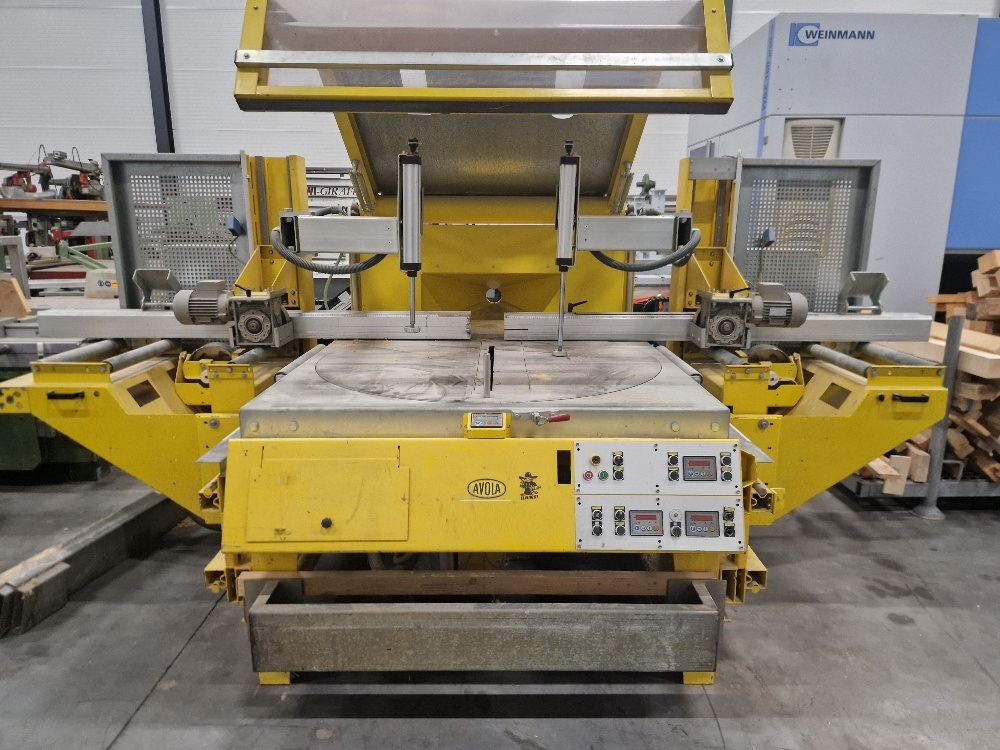

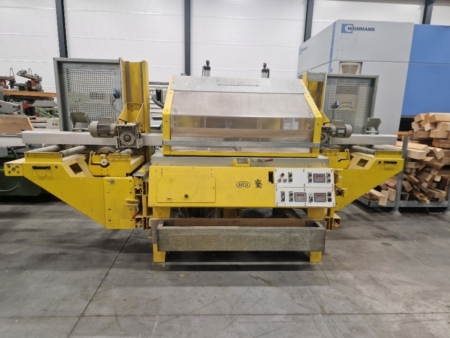

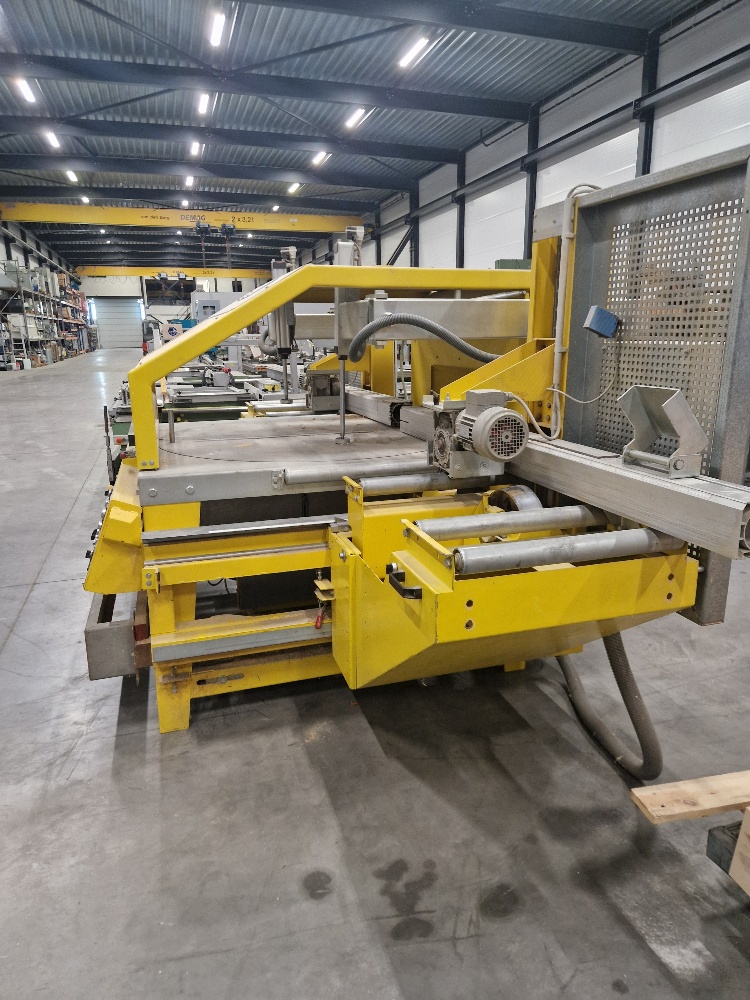

| AVOLA Gamma 60R |
|
|
|
| Manufacturer: |
Avola |
| Type |
Gamma 60R |
| Year |
2001 |
| M-Nr.: |
35001 |
|
|

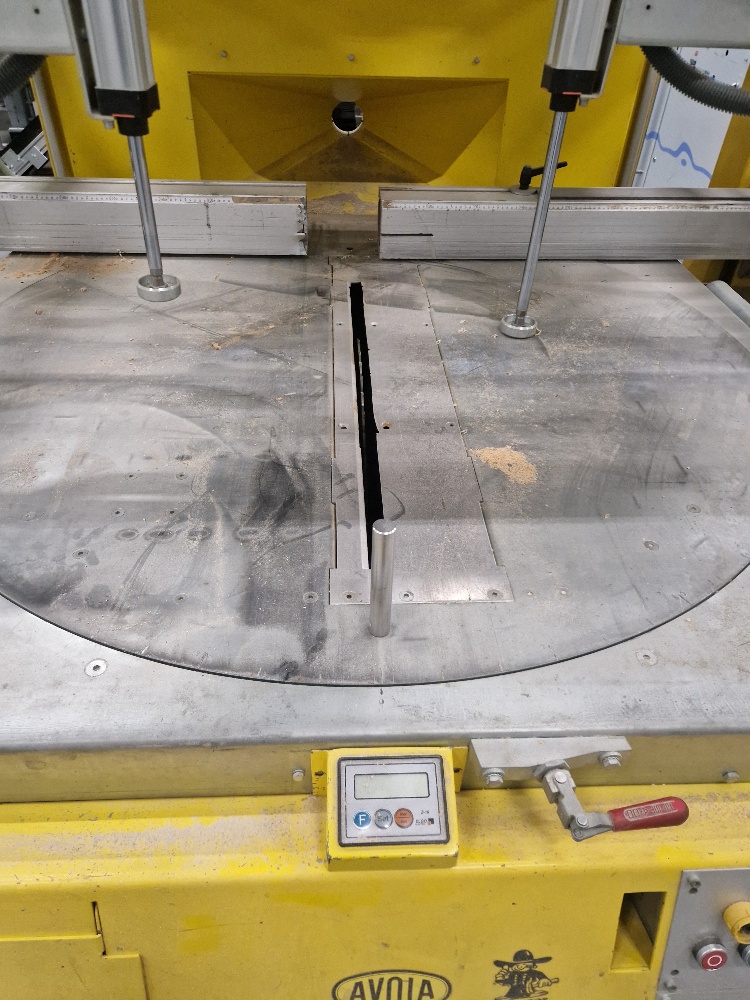

| Table dimensions: |
1.500*1.500*900 mm |
| Swivelling:Tilting: |
0 tot 180° with digital reading |
| Neigen: |
0-45° electric tilting with digital counter |
| Max. Saw heigth: |
220 mm-90°; 160 mm/45°; 110 mm/30° |
| Max. Cutting length |
mm |
| Rolltables: |
400 mm sideward movement, resulting in 400 mm increased cutting length |
| Saw: |
Ø 500/600mm, 3.000 rpm |
| Saw spindle: |
Ø 30mm |
| Motor: |
8,8 kW – Direct-drive, 400V, 50 Hz, Nom. 18A |
| RPM |
3.000 rpm |

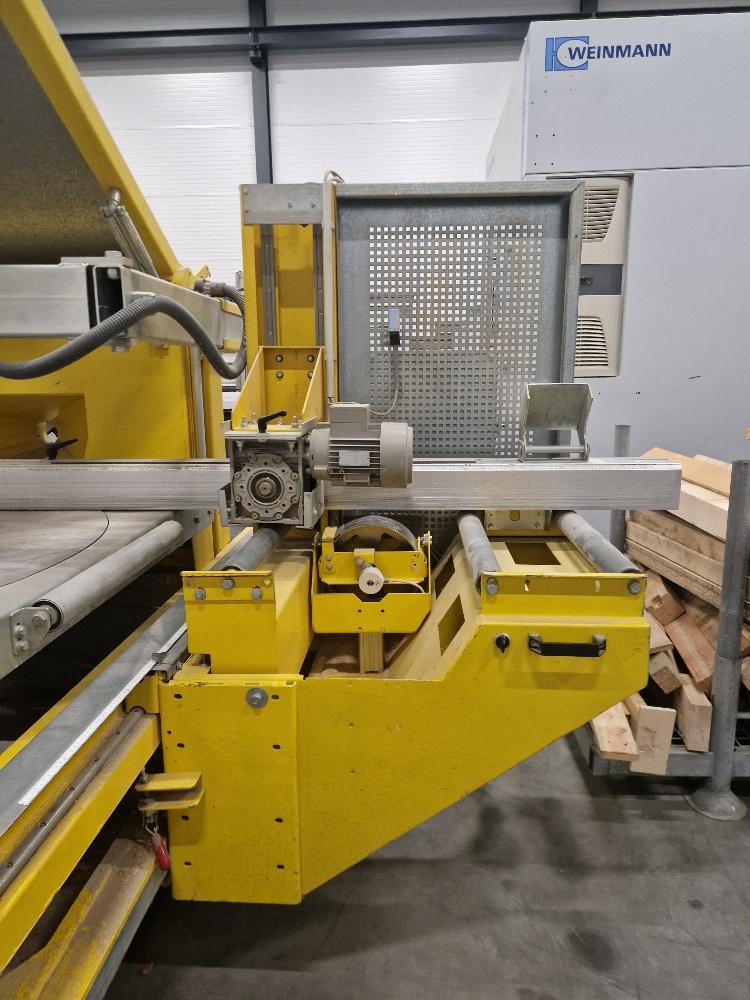

| Duo-feeders: |
Left- and Right hand side, top driven rolls |
| Length measuring: |
Left & Right length measuring wheels positioned straight under the Duo-Drive feeders, with unlimited length measuring |
| Length stoppers: |
Manual stoppers Left 4 meter and right 1.5 meters, or opposit. |
|
|
| Dust extraction: |
ø150 mm at 20,5 m/s, |
