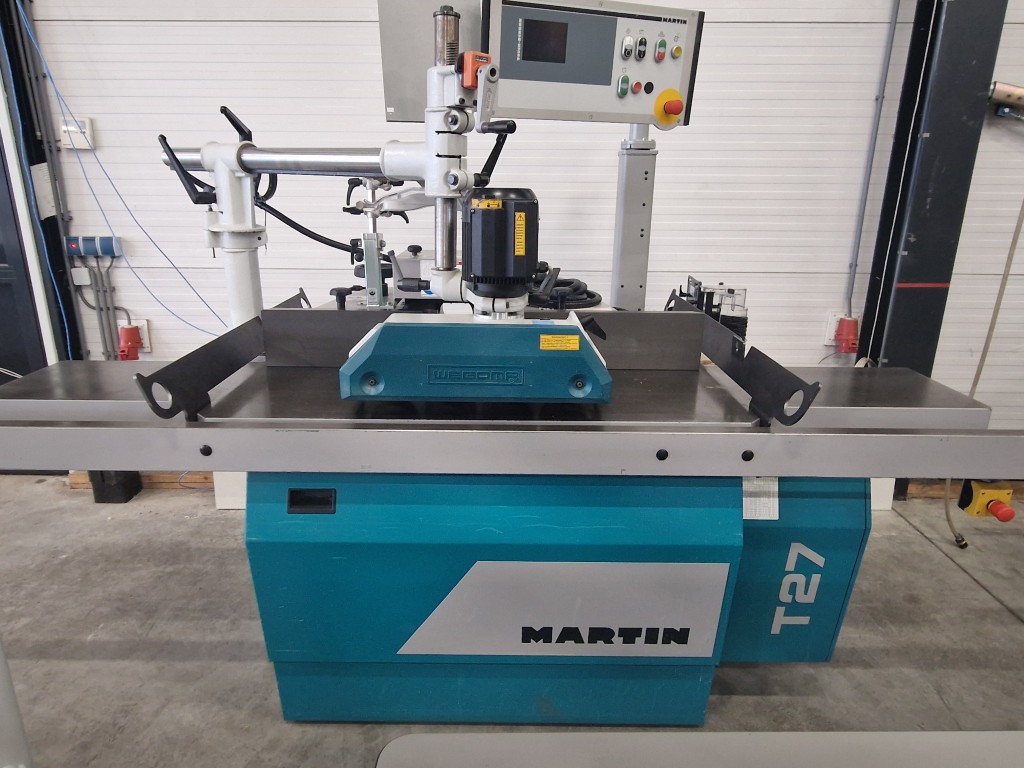

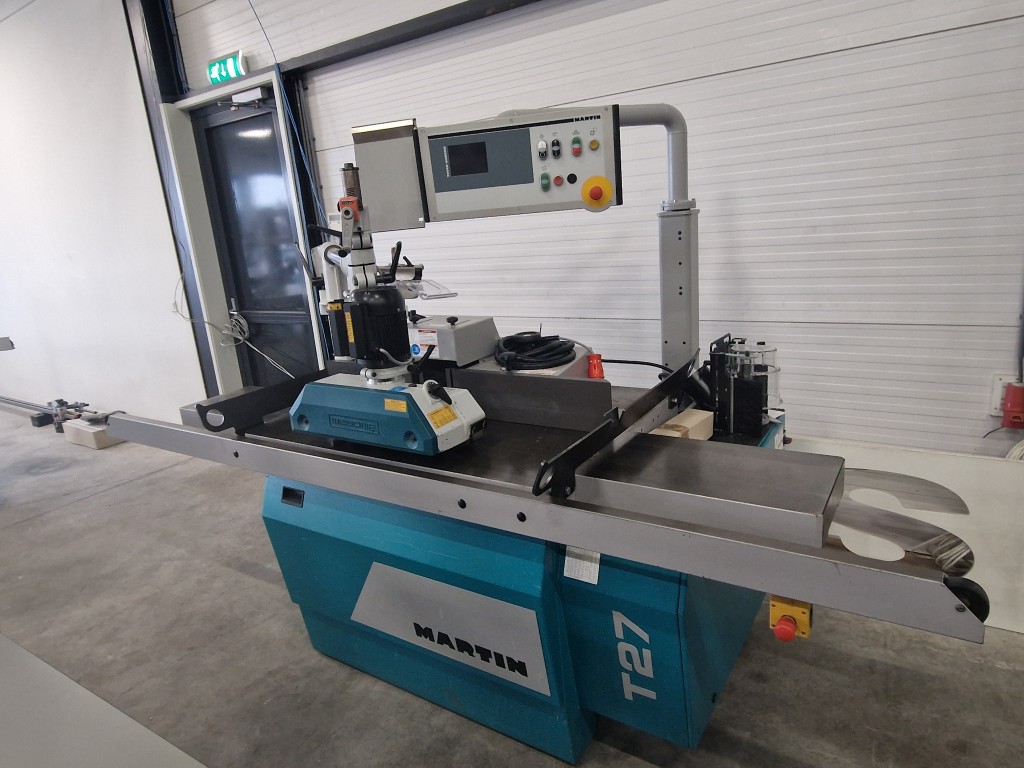

| MARTIN T27 FLEX tilting table spindle mouder: +/- 46º plus 2 CNC controlled axes |
|
|
| Brand: |
Martin |
| Type |
T27Flex |
| M-Nr.: |
V528804 |
| Year: |
2014 |
|
|
| Specifications: |
|
| Frame |
Composite structure: Steel outer walls filled with a steel-concrete composite structure providing the best stability, stiffness ande high vibration absorption capabillities |
| Weight |
ca. 1.450 kg |
| Table dimensions: |
1255 x 900 x 95 mm., cast-iron |
| Working height: |
900 mm |
| Tool opening-table: |
255/205/161/106/74 mm. diam. |
|
Tools with max diam. Ø 250 mm (max. 150 mm. when tilted 45º) under table level elevation |
| RPM: |
3.000, 4.000, 5.000, 6.000, 8.000, 10.000 rpm |
| RPM-adjustement: |
Frequency controlled |
|
Control panel at eye level, turning for highest operator comfort |
| Control: |
PowerPC-controll industrial controll, equipped with Linux TFT Touchscreen |
|
Controll panel with 216 colours), CAN-controlled servo-motoric driven axes for highest repeatability/accuracy |
|
USB-connection for data import/export/storage and programm updating |
|
Quick change system Dornfix, incl. SK40 Torque spanner |
| 2 axes-control: |
Spindle height and – swiveling CNC controlled, automatic height adaption when swiveling |
| Spindle heigth: |
150 mm (125 mm when 7.5/9.5 KW. Mmotor) with repeatabillity ± 0,025 mm; |
| Spindle tilting |
+46° upto -46°with repeatabillity: ± 0,005°; automatic height correction |
| Spindle: |
SK40 ø30 mm*160 mm |

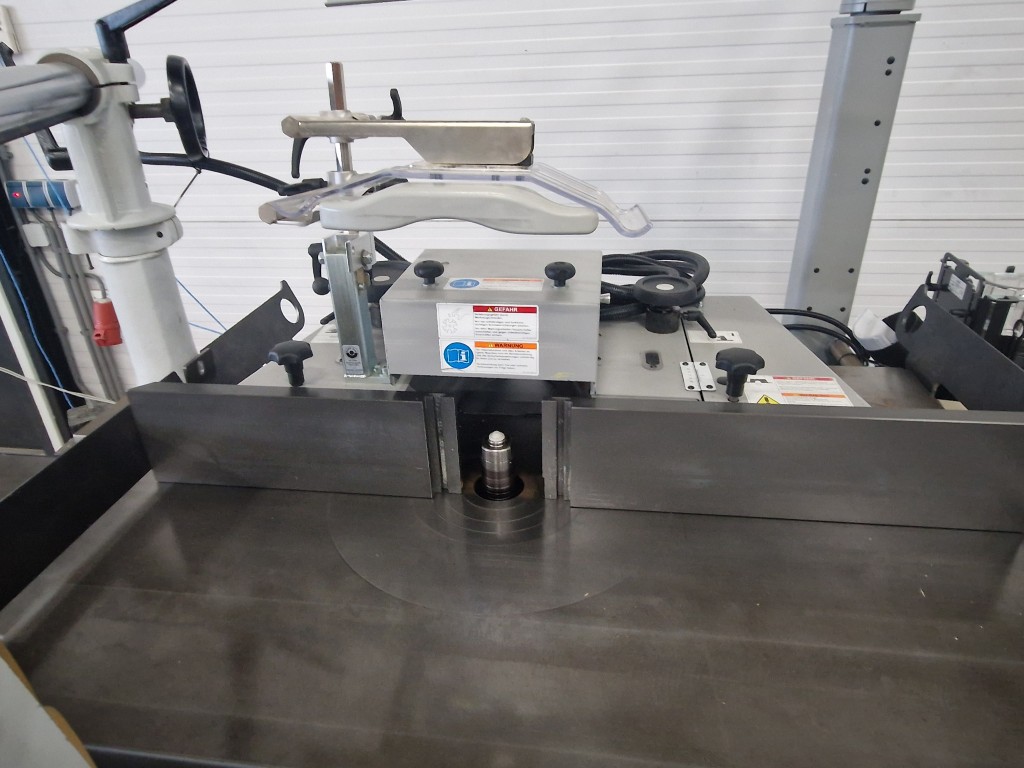

| Guidance fences: |
Liniaire guide rails – high precession positioning |
|
Simple and accurate mounting and dismounting of fences |
|
Positioning of infeed fence via handwheel (standard feature) |
|
Aluminium hard coated fences fitted with vertical grooves for “meteoor” product guidiance strips insertion (standard feature) |
|
Guidance fences positioning –6 upto +125 mm, infeed fence position vs. outfeed fence -10 upto +10 mm |
| Tooldiameter: |
Max. ø250 mm tooldiameter in combination with dust-extraction cover and lowering under table, Max. diameter ø350 mm with tenoning cover over table level |
| Dust extraction: |
Minimale capacity14 m³/min. over 500-800 Pa. |
|
Central greasing – manually operated oilpump |
| Electric: |
Automatic star-delta switch and electric breaking |
| Elektrc features: |
Feeder wall-socket with automatic on-off switch in acc. with Health & sagfety regulations |
|
5 pole wall-socket with pot. free signal to switch on-off the dust extraction |
|
2 Emergency switches; mainswitch with lock function, underpower security |
|
Motor safety switch and oevreheating safety |
|
|
| Emmissions: |
11202 WZ 125 mm. Z=2, 6000 rpm. |
| Noise emission in acc. DIN en ISO |
78,0 dB(A) |
| Free running (without dust extraction) |
84,6 dB(A) |
| Working conditions (with dust extraction) |
33893 (mg/m³) |
| Dust emmissions DIN |
Infeed max. 0,34 – outfeed max. 0,28 |
|
|

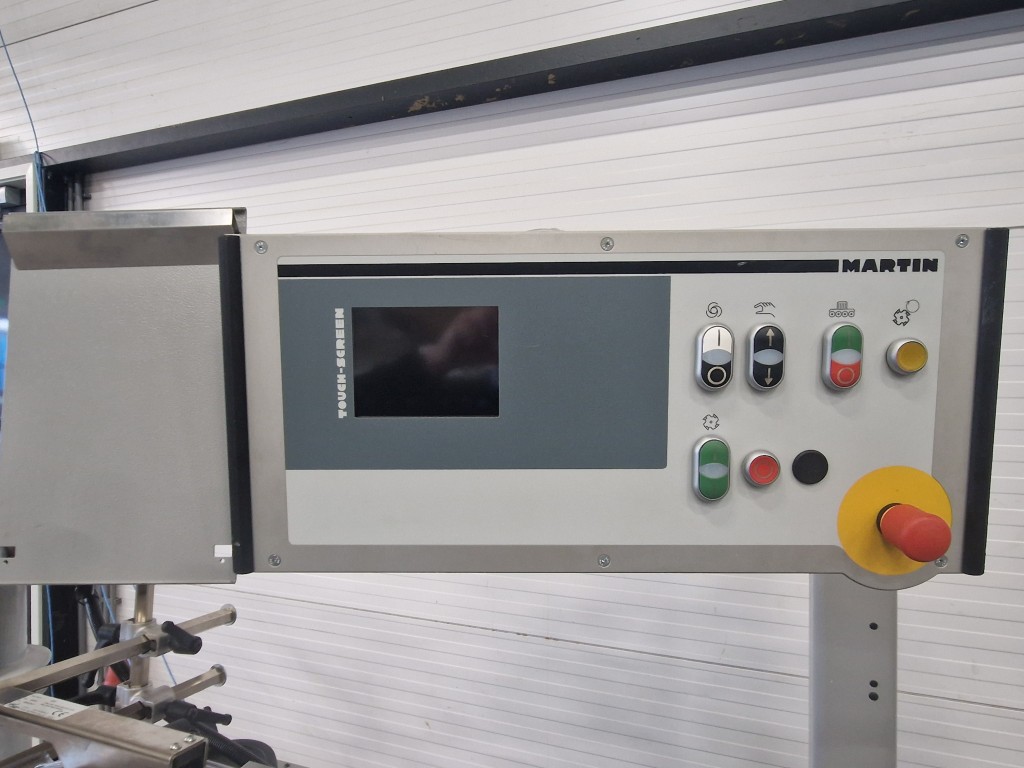

| Control panel: |
Screen surface 5,7″ (145 mm.), colours TFT (8 pigments) |
| Touch-Screen |
Electronic control, tilting +/- 46º, fully integrated with height compensation when tilted |
| * T27 Flex Freesspil neigen |
Tilting control and program memory, repeatability acuracy +/- 0,005 º |
|
Integrated positioning of the fence |
| Ax- control: |
1. Spindelelevation |
|
2. Spindel tilting |
|
Clear posisioning with optical dsiplay of functions |
|
Calculation and compensation of toolpositions in relation table and fence |
|
Table and fences, based on sacved tool data. |
| Tool libarary: |
500 gereedschappen, ieder gereedschap op 3 referentiepunten op te slaan. |
| Program positions: |
100 gereedschapsposities van alle digitaal aangeduide assen. |
| Tool + program selction: |
Alpha-nummeric |
| Referencing: |
Automatic referencing elevation and -tilting |
|
Controlled and/or manual setting |
| Spindel turning direction: |
Left or right turning with indication |
| Indication-tools: |
Revelations conter, tool name, spil and rpm |
| Calculator function: |
Integrtated with specific memory per ax, production hours, etc. |
| Diagnose & help functions: |
User friendly with specific help functions pop-up |
| Software key: |
Switch/password security for 2 user levels |
| USB: |
External data storage of tols and programs plus updates |
| RPM-control: |
In relation to tool settings |
| Collission prevention*: |
After tool installation and program selection, the machine will test settings at low rpm to prevent a crash and dangerous situations |
|
|
|
|
| * When automatic positioning of controlled axes the spindel will start running at 100 rpm and low torque |
| In case of collission-danger, the operator will be warned via central control |
| T27FX/1-a |
MARTIN T27 FLEX tilting table spindle mouder CE- conformity with 7.5 KW/10 BHP and servo drive |
| T2703-a |
Frequency controlled 7,5 kW. (10 BHP) toerentallen 1.000 – 12.000 tpm., incl. bots herkenningssysteem. |
| T2731-a |
Table extension Left and Right, extendable front support bar, approx. 3.000 mm – front extension 700 mm fitted with emergency stop |
| T2760-a |
Spindle SK 40, Ø30 mm, working length 140 mm |
| T2790-a |
Console feeder support arm |
| T1291-a |
Comfort feeder support ø58*1050 mm |
| T2723_400-a |

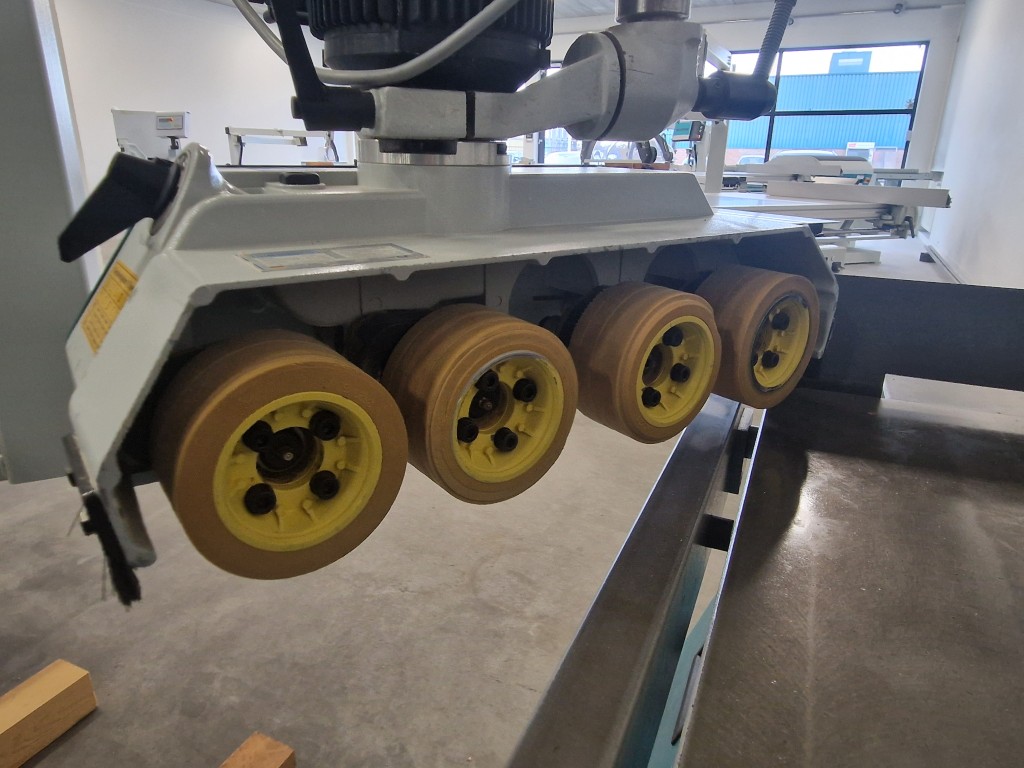

4N feeder |
